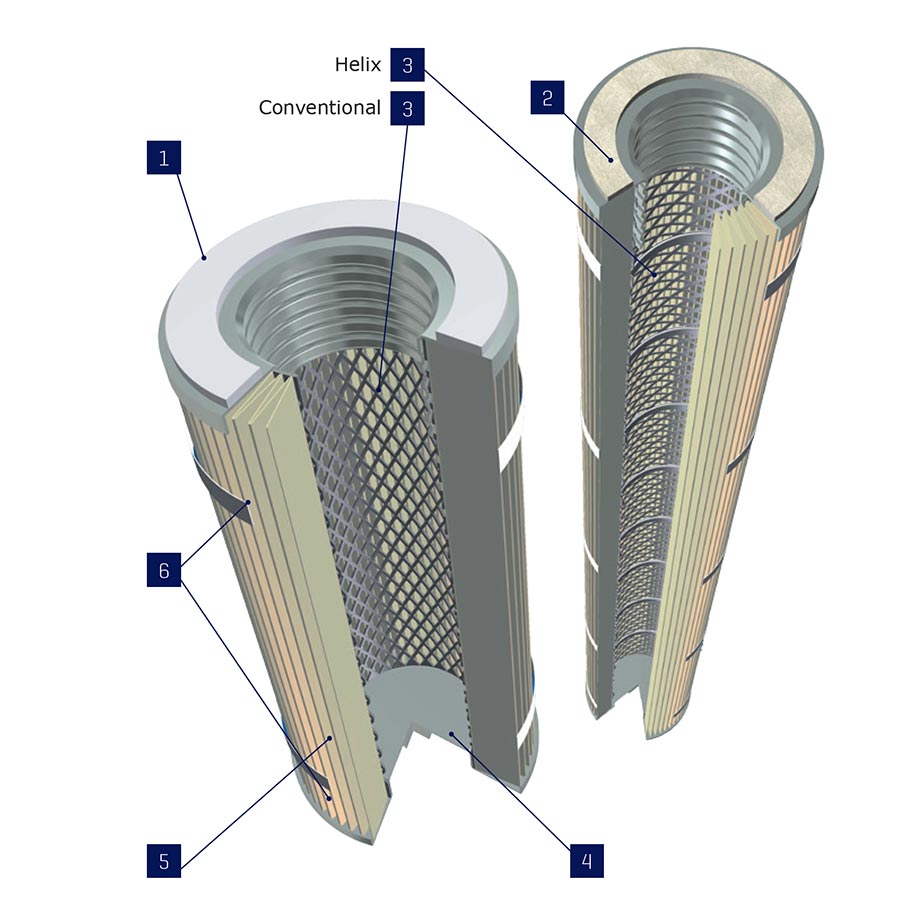

Description
TOP CAP (1)
Standard: Galvanised
Alternative: Stainless steel
GASKET (2)
Standard: Needle felt
Alternative: Neoprene
INNER MESH (3)
Standard: Galvanised
Alternative: Stainless filter mesh or galvanised Helix mesh
CLOSED BOTTOM CAP (4)
Standard: Galvanised
Alternative: Stainless
FILTER MEDIA (5)
Can be equipped with Nordic Air Filtration’s filter media selection.
OUTSIDE STRAP (6)
Optional: Glued or Ultrasonic welding
| Specifications |

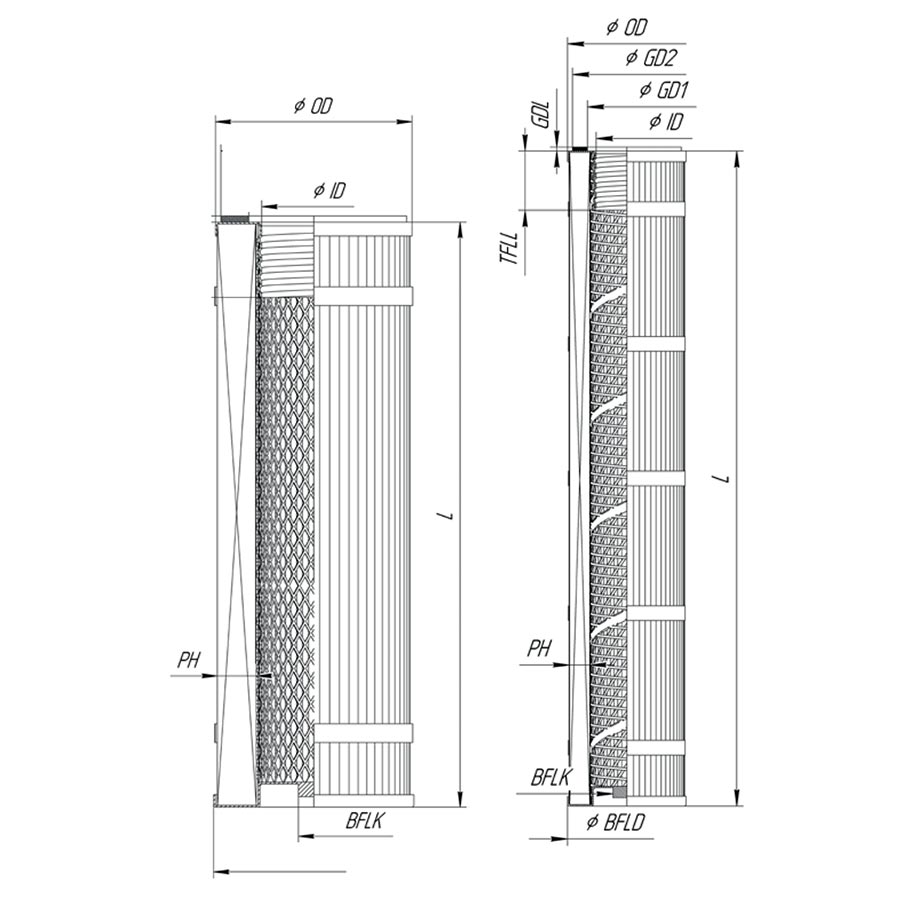

Standard dimensions |
||||||
| CRD161 | CRD72 | CRD60 | |||||
| mm | inch | mm | inch | mm | inch | ||
| Top cap outer diameter | OD | 162 | 6.38 | 120 | 4.72 | 115 | 4.53 |
| Top cap inner diameter | ID | 90 | 3.54 | 68 | 2.68 | 54 | 2.13 |
| Pleat height | PH | 26 | 1.02 | 16 | 0.36 | 22 | 0.87 |
| Bottom cap with nut outer diameter | 162 | 6.38
|
120 | 4.72 | 115
|
4.53 | |
| Nut diameter | BFLK | 81 | 3.19 | 70 | 2.76 | 65 | 2.56 |
| Cartridge length | L |
From: 200 to 2000 mm / 7.87 to 78.74 inches |
|||||
Customised dimensions available.
