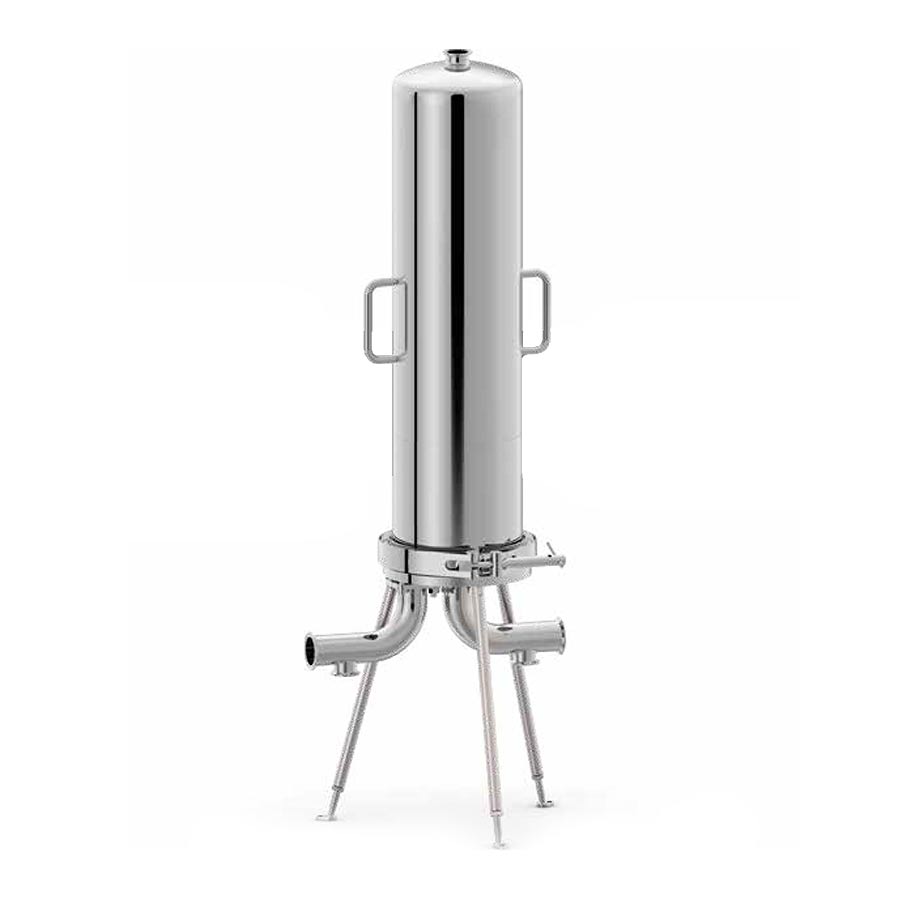

SPECIFICATIONS
Dimensions are for standard housings with TC connections only. More options available on request. All dimensions are in mm (inches).
| 1 | 5″ | 375 (14.76) | 269 (10.59) | 690 (27.17) | 101.6 (4) |
| 1 | 10″ | 375 (14.76) | 269 (10.59) | 790 (31.1) | 101.6 (4) |
| 1 | 20″ | 375 (14.76) | 269 (10.59) | 1040 (40.94) | 101.6 (4) |
| 1 | 30″ | 375 (14.76) | 269 (10.59) | 1290 (50.79) | 101.6 (4) |
| 1 | 40″ | 375 (14.76) | 269 (10.59) | 1540 (60.63) | 101.6 (4) |
| 3 | 10″ | 345 (13.58) | 385 (15.16) | 816 (32.13) | 168 (6.61) |
| 3 | 20″ | 345 (13.58) | 385 (15.16) | 1065 (41.93) | 168 (6.61) |
| 3 | 30″ | 345 (13.58) | 385 (15.16) | 1314 (51.73) | 168 (6.61) |
| 3 | 40″ | 345 (13.58) | 385 (15.16) | 1564 (61.57) | 168 (6.61) |
| 5 | 30″ | 315 (12.4) | 445 (17.52) | 1325 (52.17) | 219 (8.62) |
| 5 | 40″ | 315 (12.4) | 445 (17.52) | 1575 (62.01) | 219 (8.62) |
| 8 | 30″ | 315 (12.4) | 471 (18.54) | 1446 (56.93) | 273 (10.75) |
| 8 | 40″ | 315 (12.4) | 471 (18.54) | 1596 (62.83) | 273 (10.75) |
| 12 | 30″ | 326 (12.83) | 573 (22.56) | 1430 (56.3) | 350 (13.78) |
| 12 | 40″ | 326 (12.83) | 573 (22.56) | 1680 (66.14) | 350 (13.78) |
| 18 | 30″ | 325 (12.8) | 509 (20.04) | 1450 (57.09) | 400 (15.75) |
| 18 | 40″ | 325 (12.8) | 509 (20.04) | 1700 (66.93) | 400 (15.75) |
| 24 | 30″ | 318 (12.52) | 563 (22.17) | 1470 (57.87) | 450 (17.72) |
| 24 | 40″ | 318 (12.52) | 563 (22.17) | 1720 (67.72) | 450 (17.72) |
| 30 | 30″ | 292 (11.5) | 685 (26.97) | 1500 (59.06) | 550 (21.65) |
| 30 | 40″ | 292 (11.5) | 685 (26.97) | 1750 (68.9) | 550 (21.65) |
| 36 | 30″ | 311 (12.24) | 790 (31.1) | 1500 (59.06) | 550 (21.65) |
| 36 | 40″ | 311 (12.24) | 790 (31.1) | 1750 (68.9) | 550 (21.65) |
| 48 | 30″ | 368 (14.49) | 880 (34.65) | 1600 (62.99) | 650 (25.59) |
| 48 | 40″ | 368 (14.49) | 880 (34.65) | 1850 (72.83) | 650 (25.59) |
| 60 | 30″ | 368 (14.49) | 1000 (39.37) | 1700 (66.93) | 750 (29.53) |
| 60 | 40″ | 368 (14.49) | 1000 (39.37) | 1950 (76.77) | 750 (29.53) |
| Materials of Constructions (Wetted Parts) | 316L / 1.4404 |
| No. Of Cartridges | 1, 3, 5, 8, 12, 18, 24, 30, 36, 48, 60 |
| Cartridge Socket | 226 CODE 7, 222 CODE 8, CODE 28 |
| In/Out Connections | “Clamp ASME BPE, DIN 11851, Butt Weld, ASME and EN Flanges” |
| Drains and Vent | Clamp ASME BPE, DIN 11851 |
| Pressure (PS) min-max | -1÷10 bar (-14÷145 psi) |
| Temperature (TS) min-max | -20°÷150°C (-4°÷302°F) |
| External Surface | Mirror Polished |
| Internal Surface | Mechanical Polishing to Ra<0.8µm (Ra<32µin) |
| ATEX | Compliant with EU Directive |
| PED 2014/68/EU | Liquid and Gas, PED Fluid Group 2 |
| Design Code | EN 13445 |
| Housing and Gasket Materials | EU 1935/2004 – FDA – USP VI |
| Special Features | Heating Jacket, Lifting Lugs, Front and Back Elbows, No Legs, Plugs |
