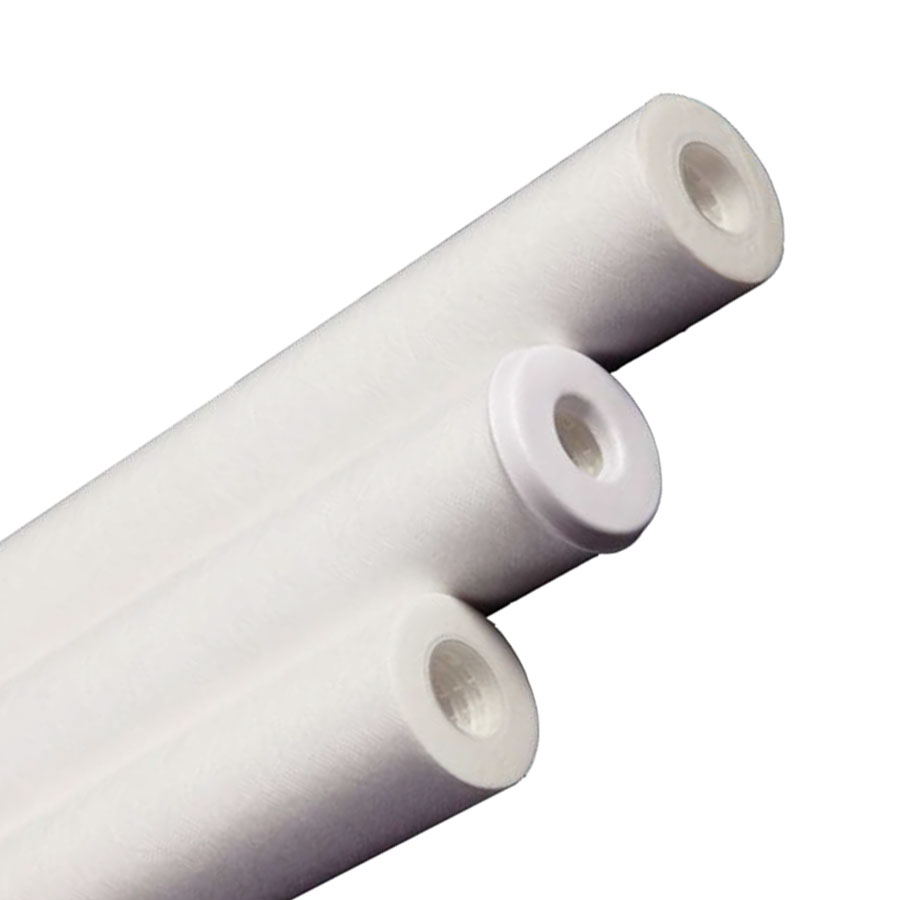

PolyRolled Filter Cartridge RMF

PolyRolled Filter Cartridge RMF

RMF cartridges are constructed of a continuous polypropylene material. The graded pore size of the cartridge provides a high retention efficiency. The cartridges also have large filtration area and long life cycle as the result of their multiple-layer polypropylene membrane.

RMF-CRN series are constructed of double-layer polypropylene fiber. They have over two times higher retention efficiency and three times longer life cycle than similar polypropylene products.

RMF-PR series are constructed of single-layer superfine polypropylene fiber, the filtration efficiency is over 99.9%.

Features and Benefits

  • All-polypropylene structure, without any binder, less dissolved, raw materials meet NSF requirements
  • High dirt holding capacity, long life cycle
  • RMF-PR series have an absolute filtration efficiency

Typical Applications

  • Protection filtration for RO system
  • Pre-filtration for cooling water system

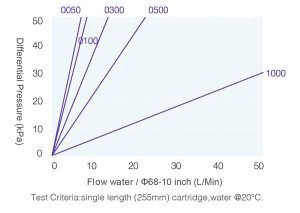

Flow Rate Characteristics

Categories / Industries:
Chemicals and Coatings, Dairy, Depth Pre Filtration, Food and Beverage, Pharmaceutical, Utilities, Water Treatment


Details

Email Us Call Us
  • Description

Description

Materials of Construction

Filter Medium Rolled Polypropylene Microfiber
Support Layer Polypropylene
Core/Cage/End Caps Polypropylene
O-Rings Please refer to ordering information

Operating Conditions

Max. Operating Temperature 80°C
Max. Differential Pressure 4 bar / 21°C
2.1 bar / 80 °C

Ordering Information

RMF-CRN-PR Removal Ratings End Cap Nominal Length Seal Material
0030=0.3 μm DOE = Double Open End 05= 5″ S=Slilicone
0050=0.5 μm TC = 222/Flat Cap 10=10″ E=EPDM
0100=1.0 μm TF = 222/Fin Cap 20=20″ V=Viton
0300=3.0 μm SF = 226/Fin Cap 30=30″ P=PFA/Viton
0500=5.0 μm SC = 226/Flat Cap 40=40″
1000=10 μm N = No Gaskets
2500=25 μm H = PE Gaskets
5000=50 μm
