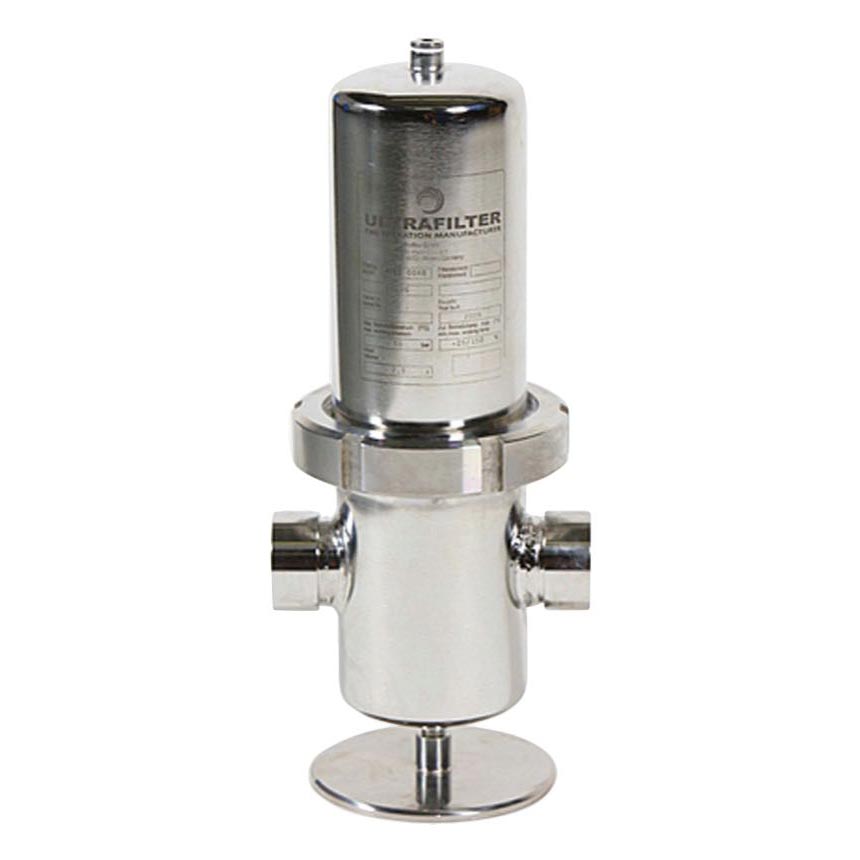

Description
Materials
| Filter housing | stainless steel 1.4301 (304) or 1.44.04 (316L) |
| Coupling nut | stainless steel 1.4301 (304) |
| Plug | stainless steel 1.4301 (304) |
| Housing gasket | EPDM (other gasket upon request) |
Surface finish
| Inner: | 0006 – 0288 | etched and passivated Ra 0,8 |
| 0432 –1920 | ||
| Outer: | 0006 – 0288 | etched, passivated and polished Ra 1,6 |
| 0432 – 1920 | etched and passivated (not polished) |
Connection types
| BSP thread connection | standard for 0006 – 0288 single housing |
| DIN flange | standard, starting at 0432 multiple housing |
| Welded ends | Other connections and bigger housings, in request |
Maximum design temperature
-25 to 200°C
Maximum operating pressure:
| 0006 – 0192 | 16 bar |
| 0288 | 12 bar |
| 0432 – 1920 | 10 bar |
