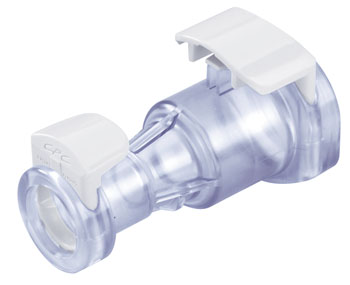

MPX Series Connectors add ease of use and security to your media transfer applications. Choose from a full line of connectors and configurations, including pressure sealing caps and plugs in sizes to fit 3/8″ and 1/2″ tubing. MPX couplings offer optional locking sleeves to further guard against accidental disconnects. In addition, coupling halves can be rotated when connected reducing tube kinks.
| Features | Benefits |
|---|---|
| Ergonomic thumb latch | Easy to operate – even with gloved hands |
| USP Class VI materials | Meet biocompatibility requirements |
| Sterilizable by autoclave, Et0, e-beam, or gamma | Reusable, yet economical enough to allow disposability |
| Parting line-free hose barb | Eliminates potential leak path |
| ADCF-free materials | Meet BSE/TSE requirements |
| Main components: | Polycarbonate (purple tint), USP Class VI, ADCF |
|---|---|
| Polysulfone (amber tint), USP Class VI, ADCF | |
| Locking sleeves: | Polysulfone (white), USP Class VI, ADCF |
| Thumb latches: | Polycarbonate (white), PVDF (white), USP Class VI, ADCF |
| O-rings: | Silicone (clear), platinum-cured, USP Class VI, ADCF |
| Gamma Irradiation: | Up to 50 kGy irradiation. |
|---|---|
| Autoclave: | Polycarbonate: Up to 250°F (121°C), 30 minutes, up to 10 repetitions. Sterilize uncoupled only. |
| Polysulfone: Up to 270°F (132°C) for 60 minutes, up to 25 repetitions. Sterilize uncoupled only. |
| Cv ~ 14.2 (204.60) max | |
| Cv values are based on gpm and psi, and Ipm and bar (shown in parentheses). |
