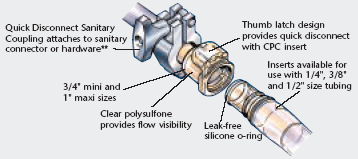

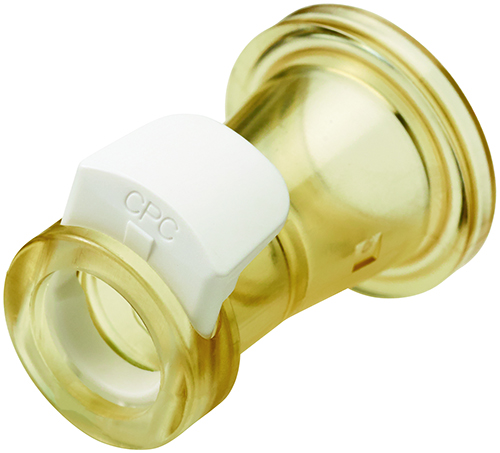

MPC/MPX Sanitary Connectors attach directly to 3/4″, 1″ and 1-1/2″ sanitary terminations to provide greater flexibility for integrating components into single-use or hybrid (single-use to stainless) process systems. Standard bag systems with quick couplings can be easily connected to equipment with sanitary terminations, while single-use cartridge filters can be converted to incorporate quick couplings for greater system modularity.
| Features | Benefits |
| Ergonomic thumb latch | Easy to operate – even with gloved hands |
| 3/4″ mini and 1″ maxi sanitary terminations | Install with standard gaskets and clamps |
| Compatible with MPC and MPX Series | Easy conversion to industry standard connections on single-use systems |
| BSE/TSE free materials | Meet ADCF requirements |
| Pressure: | Vacuum to 60 psi, 4.14 bar |
|---|---|
| Temperature: | -40°F (-40°C) to 300°F (149°C) |
| Main components: | Polysulfone (amber tint), USP Class VI, ADCF |
|---|---|
| Seals: | Silicone (clear), platinum-cured, USP Class VI, ADCF |
| Sanitary sizes: | 3/4" mini and 1" maxi |
| Autoclave: | At 270°F (132°C) for 60 minutes, up to 25 cycles |
|---|---|
| EtO: | Up to five cycles |
| Gamma irradiation: | Up to 50 Kilograys |
| E-Beam: | Up to 50 Kilograys |
| Cv ~ 5.5 (79.25) max with MPC inserts | |
| Cv ~ 14.2 (204.60) max with MPX inserts | |
| Cv values are based on gpm and psi, and Ipm and bar (shown in parentheses). |
