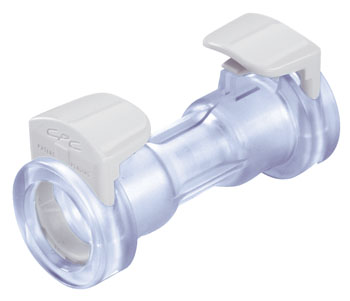

MPC/MPX Back-to-Back Adapters give end users the flexibility of connecting single-use systems that feature identical coupling connections at the end of their tubing. Combining both MPC and MPX couplings provides a reducing option for users who need to transition between tubing diameters ranging from 1/8″ to 1/2″.
| Features | Benefits |
| Compatible with MPC and MPX Series inserts | Easy conversion to industry standard connections or single-use systems |
| Tubing reduction option | Allows easy transition between multiple size tubing from 1/8″ to 1/2″ ID |
| Ergonomic thumb latches | Easy to operate – even with gloved hands |
| BSE/TSE free materials | Meet ADCF requirements |
| Pressure: | Vacuum to 60 psi, 4.1 bar |
|---|---|
| Temperature: | Polycarbonate: -40°F to 250°F (-40°C to 121°C) |
| Polysulfone: -40°F to 300°F (-40°C to 149°C) |
| Main component: | Polycarbonate (purple tint), USP Class VI, ADCF |
|---|---|
| Polysulfone (amber tint), USP Class VI, ADCF | |
| Thumb latches: | Polycarbonate (white), USP Class VI, ADCF |
| Polysulfone (amber tint), USP Class VI, ADCF | |
| O-rings: | Silicone (clear), platinum-cured, USP Class VI, ADCF |
| Gamma irradiation: | Up to 50kGy irradiation |
|---|---|
| Autoclave: | Polycarbonate: Up to 250°F (121°C), 30 minutes, up to 10 repetitions. Sterilize uncoupled only. |
| Polysulfone: Up to 270°F (132°C) for 60 minutes, up to 25 repetitions. Sterilize uncoupled only. |
| Cv~5.5 (79.25) max | |
| Cv values are based on gpm and psi, and Ipm and bar (shown in parentheses). |
