Description
Materials of Construction
| Filter media | Polypropylene |
| Inner Core | Polypropylene |
| End Caps and Adaptors | Polypropylene |
| Nominal O.D. | 63 mm |
| Nominal I.D. | 28 mm |
Operating Conditions
| Max. Operating Temperature | 60°C) |
| Max. Changeout Differential Pressure | 35 psid (2.41 bar) |
Ordering Information
| MB-PPKP | Removal Ratings | End Cap | Nominal Length | Seal Material |
| 0100=1.0μm | H = PE Gaskets | 10 = 10″ | S = Silicona | |

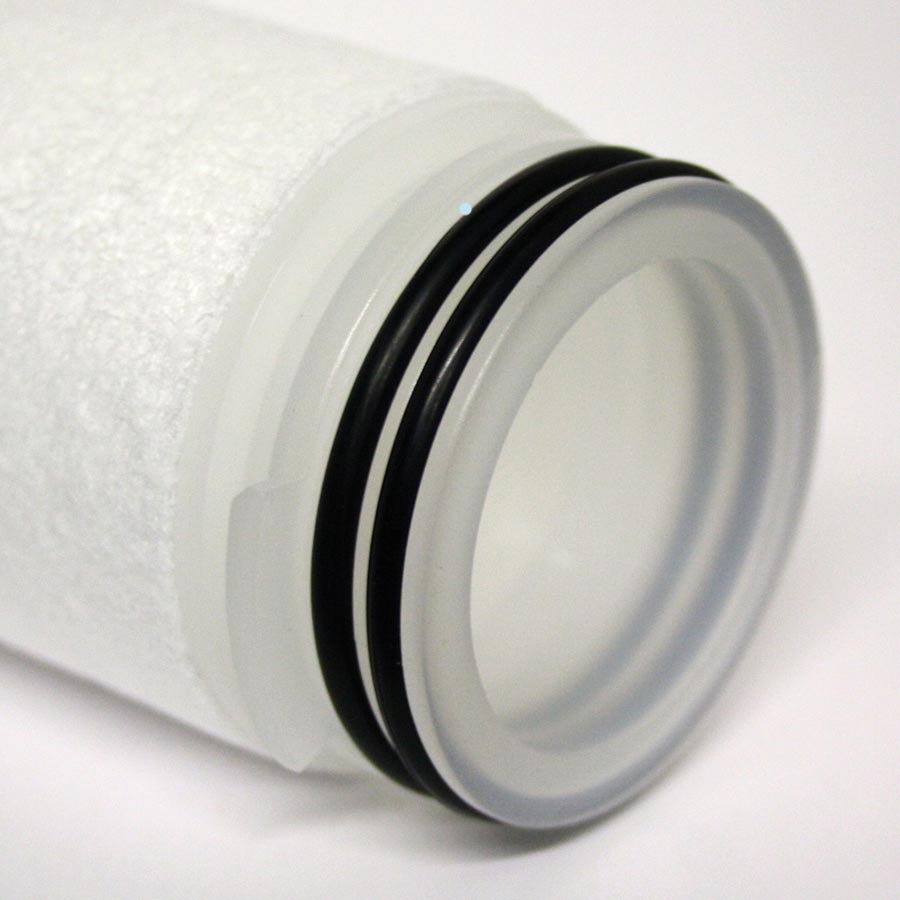

| 0500=5.0μm | TC = 222 o-ring/flat cap | 20 = 20″ | E = EPDM | |

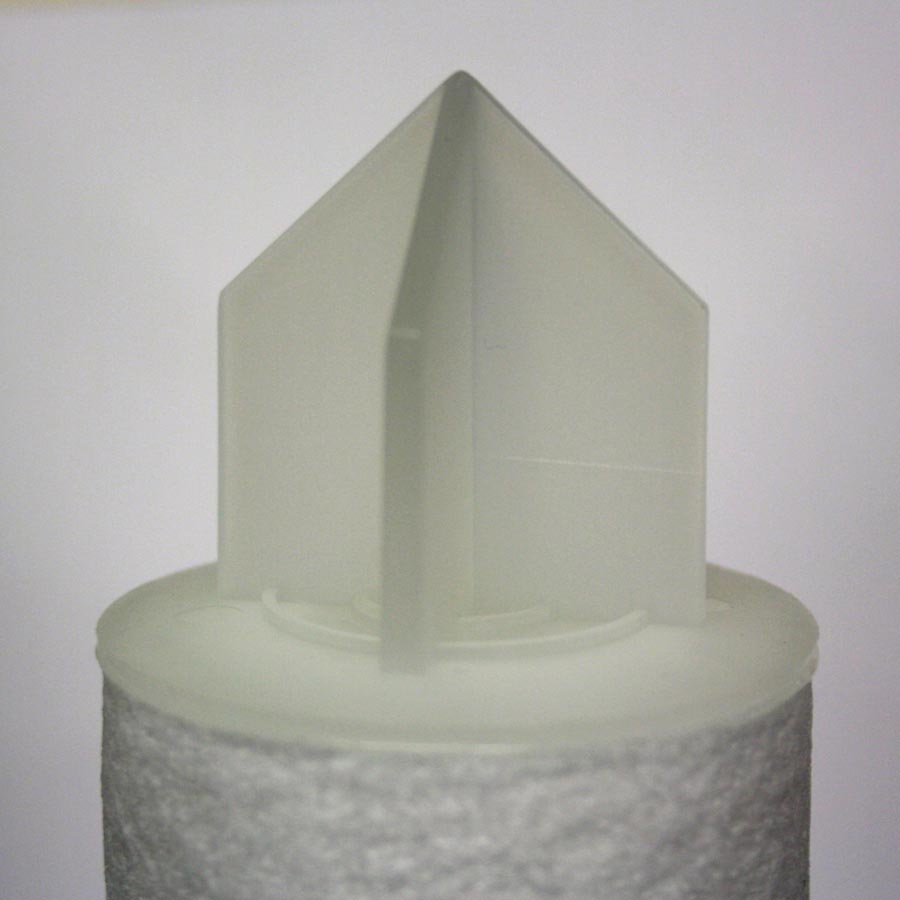

| 1000=10 μm | TF = 222 o-ring/fin | 30 = 30″ | V = Viton | |
| 2000=20 μm | SF = 226 o-ring/fin | 40 = 40″ | ||
| 5000=50 μm | DOE = Double Open End | 50 = 50″ | ||
| 7500=75 μm |
