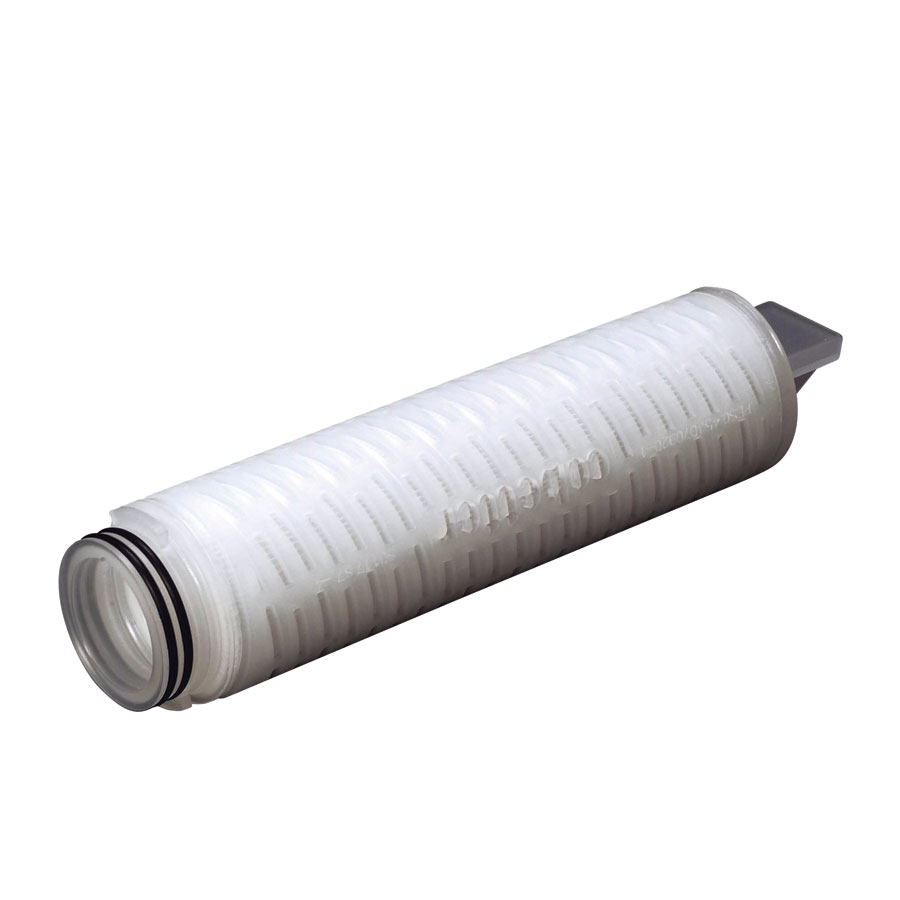

Description

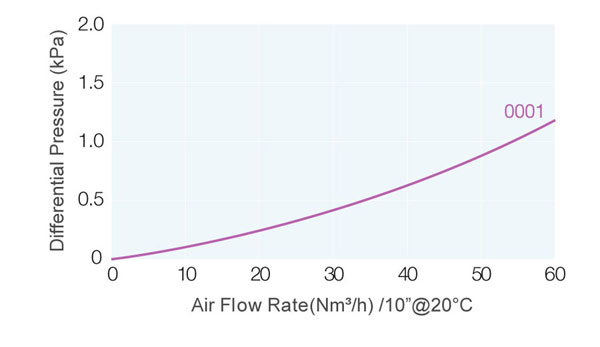

Flow Rate Characteristics
Materials of Construction
| Filter Media | Super-fine Glass Microfiber |
| Support | Polypropylene |
| Core/Cage/End Caps | Polypropylene |
Operating Conditions
| Max. Temperature | 80°C |
| Max. Differential Pressure | 4.0 bar / 21°C |
| 2.4 bar / 80 °C | |
| Effective Filtration Area | 0.35 mÇ / ϕ 69-10inch |
Sterilization
| Inline Steam Sterilization | up to 30 cycles (135°C for 30min@30kPa per cycle) |
Ordering Information
| Removal Ratings | End Cap | Nominal Length | Seal Material |
| 0001=0.01 μm | HSF=226 /Fin (PBT Insert) | 05=5″ | S=Silicone |
| 0030=0.3 μm | HSC=226 /Flat (PBT Insert) | 10=10″ | E=EPDM |
| 0050=0.5 μm | HTF=222 /Fin (PBT Insert) | 20=20″ | V=Viton |
| HTC=222 /Flat (PBT Insert) | 30=30″ | ||
| DOE=Double Open End | 40=40″ |
