Fluorofil™ Plus

Description

Guaranteed microbial ratings in a liquid challenge
Fluorofil™ Plus cartridges are validated for bacterial removal according to
HIMA guidelines and ASTM F838-05, with a log reduction value >7.

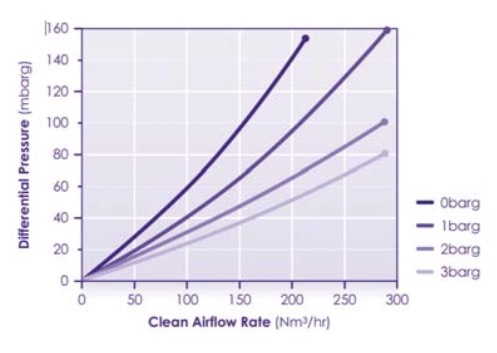

High Flow ΔP characteristics
The unique characteristics of the ePTFE membrane, having higher surface area, combined with the construction of the Fluorofil™ Plus filter cartridge, results in exceptionally high gas flow rates at low pressure differentials. These features result in lower energy consumption and fewer filter cartridges per system.
Mechanical strength

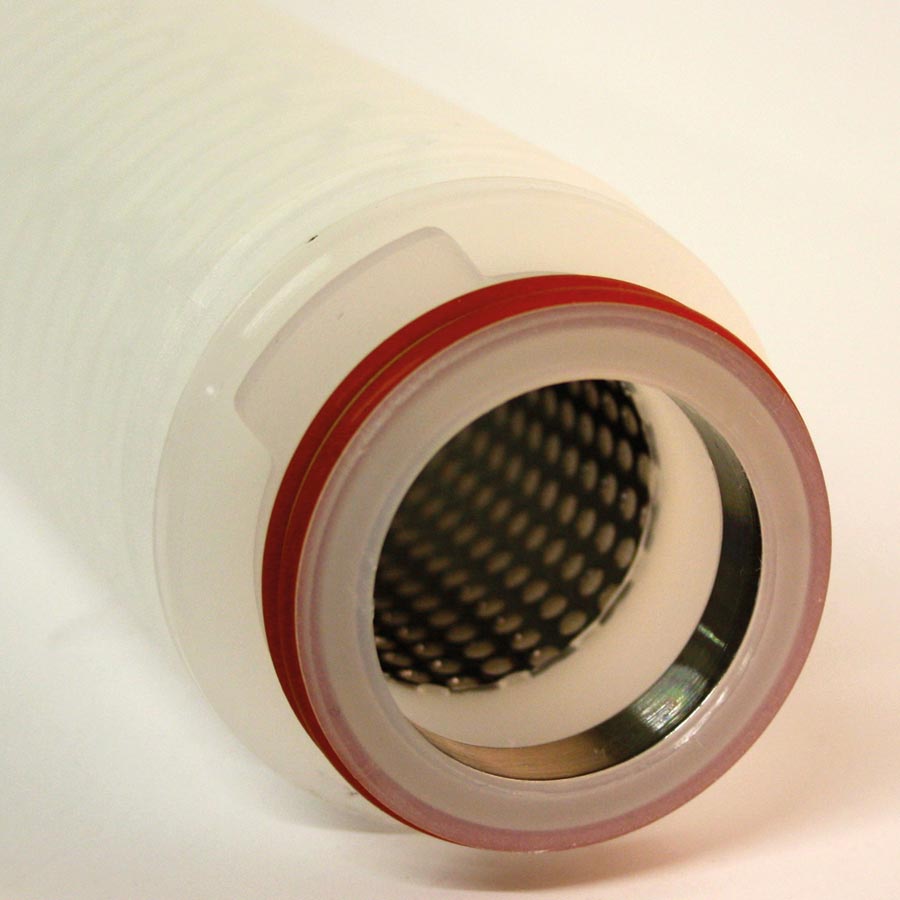

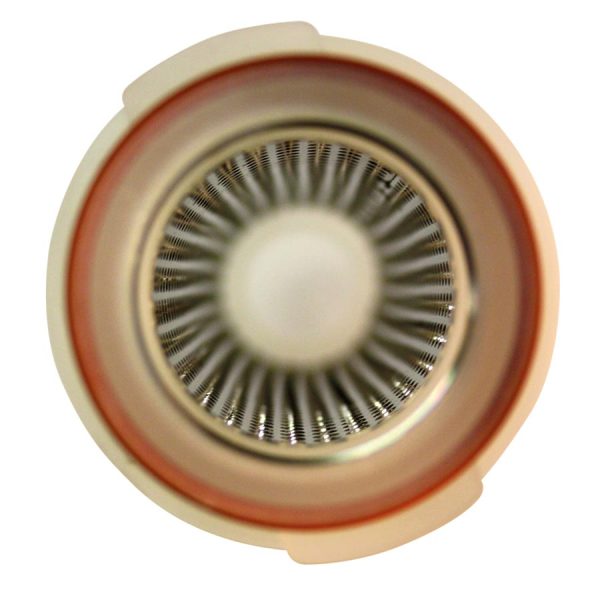

Fluorofil™ Plus cartridges incorporate a stainless steel central core which provides greater mechanical strength. This allows the filter to be used at higher gas flow rates with low pressure differentials.
Cartridge integrity and low TOC levels
All Fluorofil™ Plus cartridges are integrity tested and supplied clean, having been flushed with pure water.

Ethylene Propylene, PTFE encapsulated, Silicone or Nitrile.

Maximum continuous: 80°C (176°F).

In situ steam 100 x 20 minute cycles at 135°C (275°F) to 150 x 20 minute cycles at 125°C (257°F).

Absolute Microbial Rating	Effective Filtration Area (each 254mm (10") module)
0.2μm	0.8m2 (8.6ft2)

Sterile process gases The supply of sterile gas for critical applications in the pharmaceutical, biotechnology, food and beverage markets.
Sterile vents The safe sterile venting of processing vessels in pharmaceutical, fermentation, and food and beverage processes.
Biotechnology The sterile filtration of exhaust gases from biological fermenters.
Powder handling and tabletting The removal of ultrafine powder particles from compounding environments.
