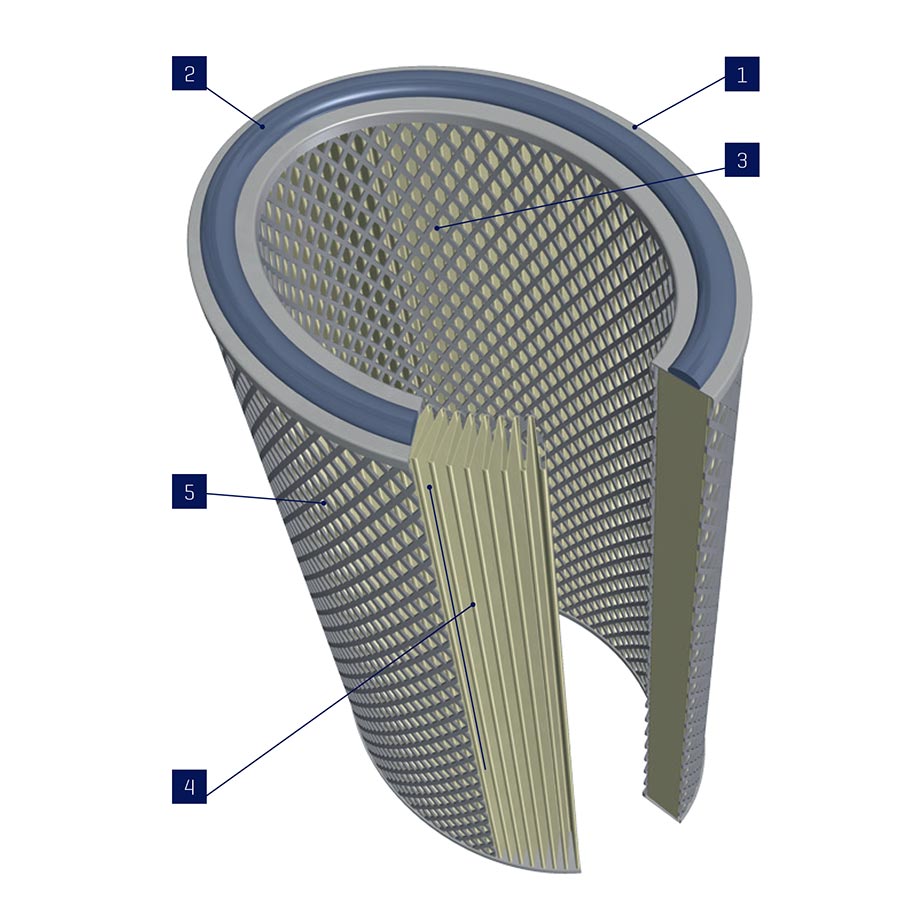

Description
TOP/BOTTOM CAP (1)
Standard: Galvanised
GASKET (2)
Standard: Foamed gasket
Alternative: Silicone gasket
INNER MESH (3)
Standard: Galvanised
FILTER MEDIA (4)
Can be equipped with Hall Pyke’s filter media selection. Glue bead separator added to ensure flawless pleat distribution
OUTSIDE STRAP (5)
Standard: Outside mesh
Alternative: Glued strap
| Specifications | Standard dimensions / mm | ||
| mm | inches | ||

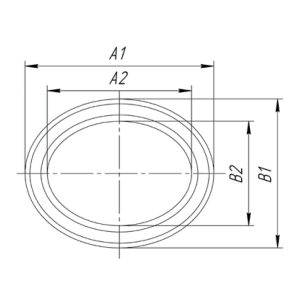

| Top cap outer diameter | OD | 288 (B1) / 365 (A1) | 11.34 (B1) / 14.37 (A1)
|
| Top cap inner diameter | ID | 202 (B2) / 279 (A2) | 7.95 (B2) / 10.98 (A2) |

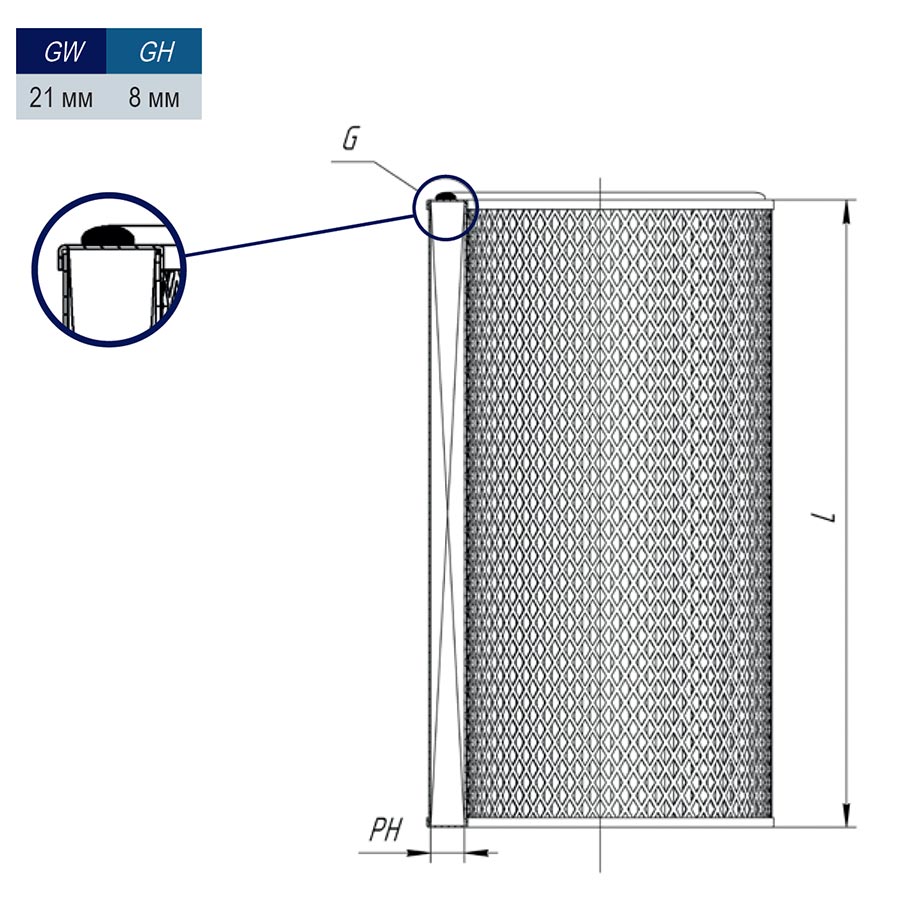

| Pleat height | PH | 36 | 1.42
|
