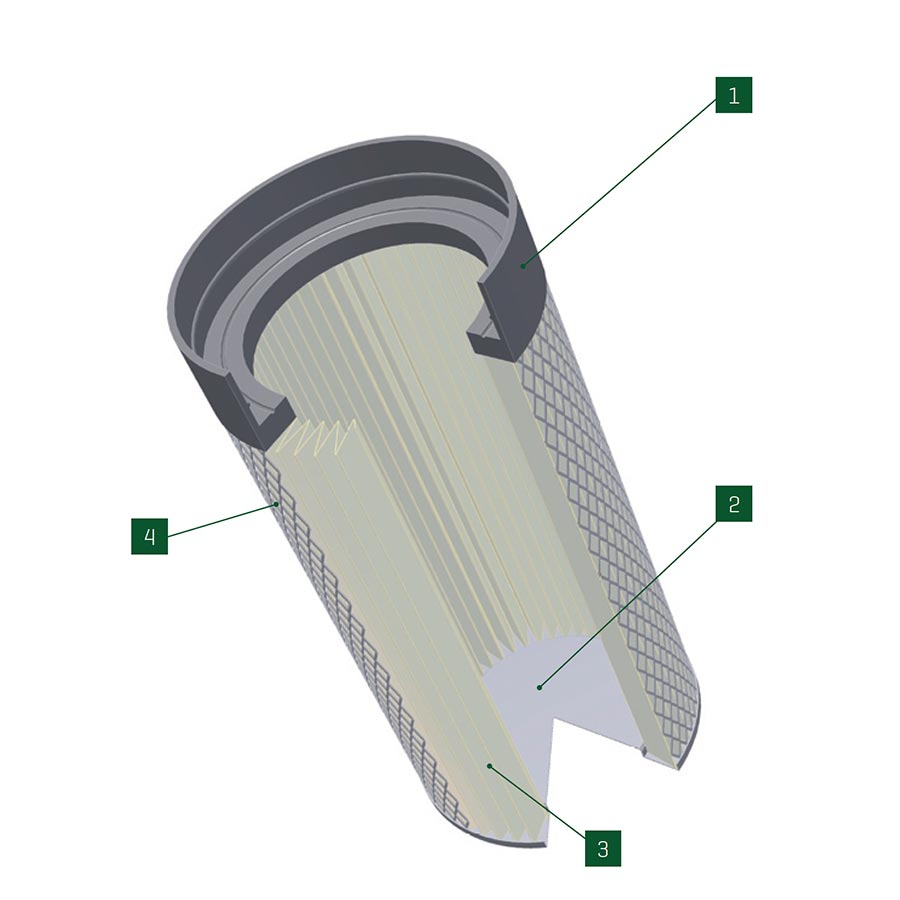

Description
TOP CAP (1)
Molded polyurethane (PU) – soft
CLOSED BOTTOM CAP (2)
Galvanised
Available with mounting holes
FILTER MEDIA (3)
Can be equipped with Hall Pyke’s filter media selection.
OUTER MESH (4)
Galvanised steel
| Specifications
|

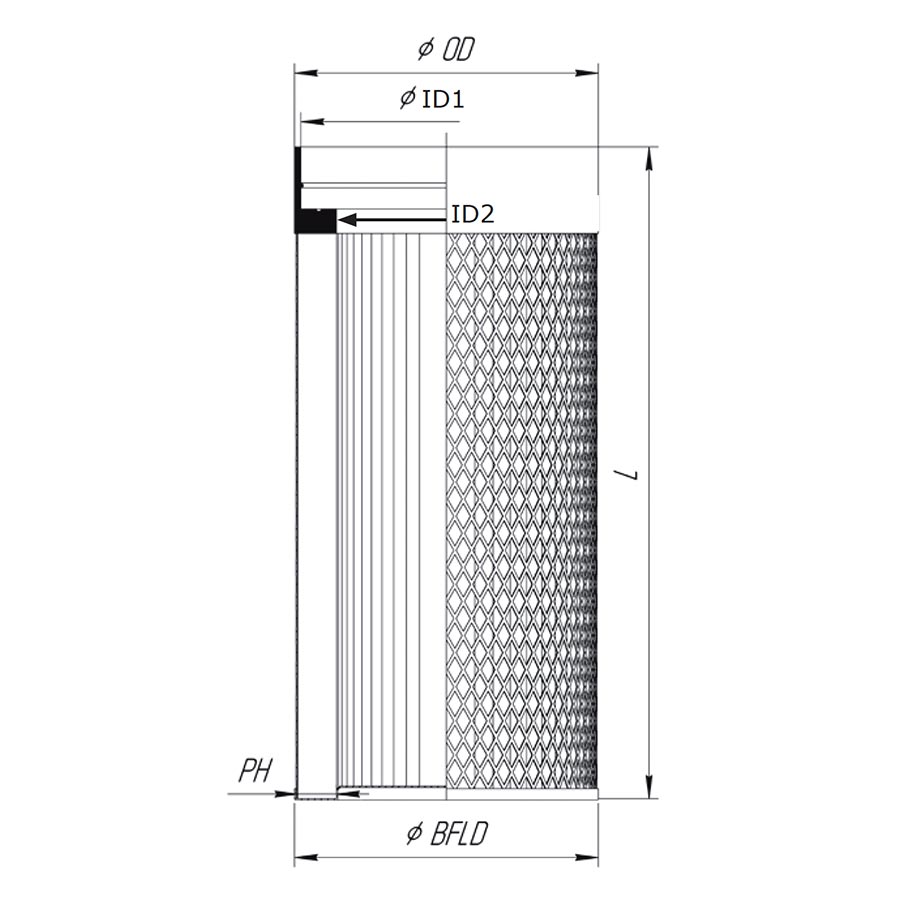

Standard dimensions / mm | ||||||||
| CS600 | CS495 | CS520 | CS478 | CS400 | CS320 | CS280 | CS230 | ||
| Top cap outer diameter | OD | 620 | 515 | 534 | 500 | 410 | 329 | 338 | 245 |
| Top cap inner diameter | ID1 | 597 | 487 | 514 | 480 | 395 | 317 | 270 | 230 |
| Top cap inner diameter | ID2 | 505 | 400 | 400 | 395 | 317 | 237 | 242 | 162 |
| Bottom cap outer diameter | BFLD | 600 | 490 | 488 | 488 | 400 | 325 | 325 | 231 |
| Pleat height | PH | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 |
| Cartridge lenght | L | From 500 to 1000 | |||||||
