Clear and Blue 20

Clear and Blue 20

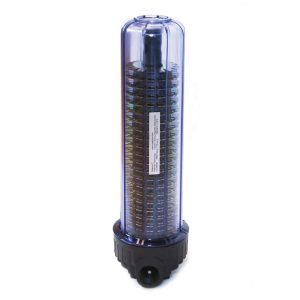

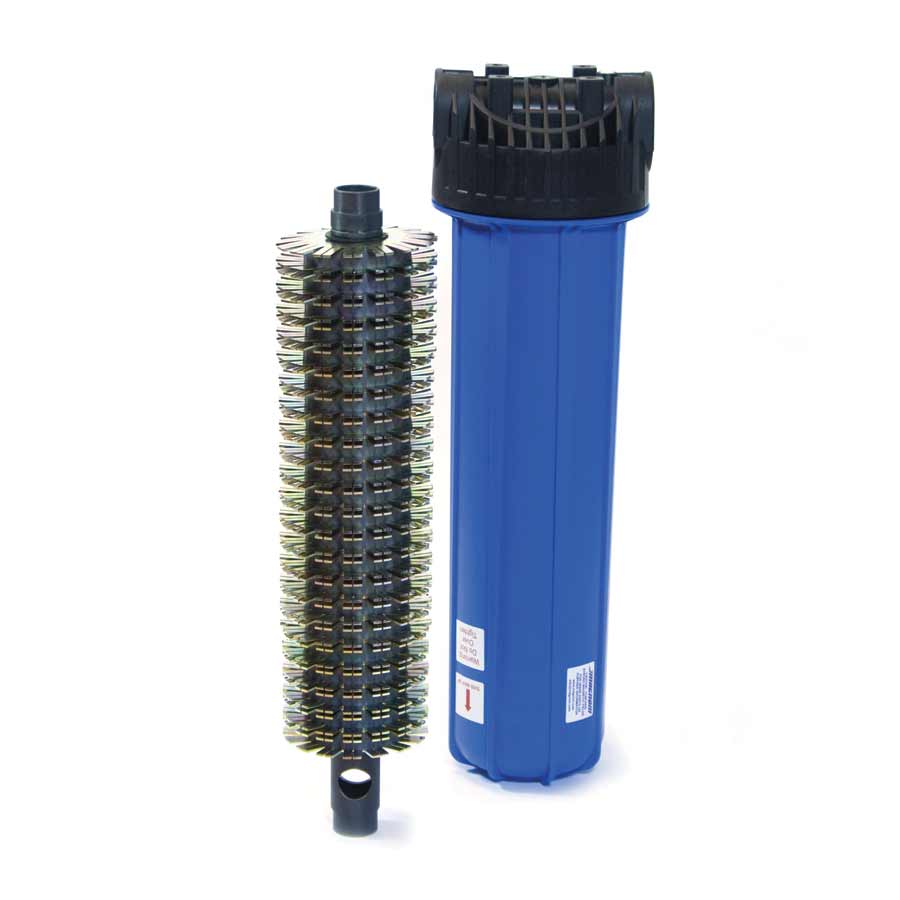

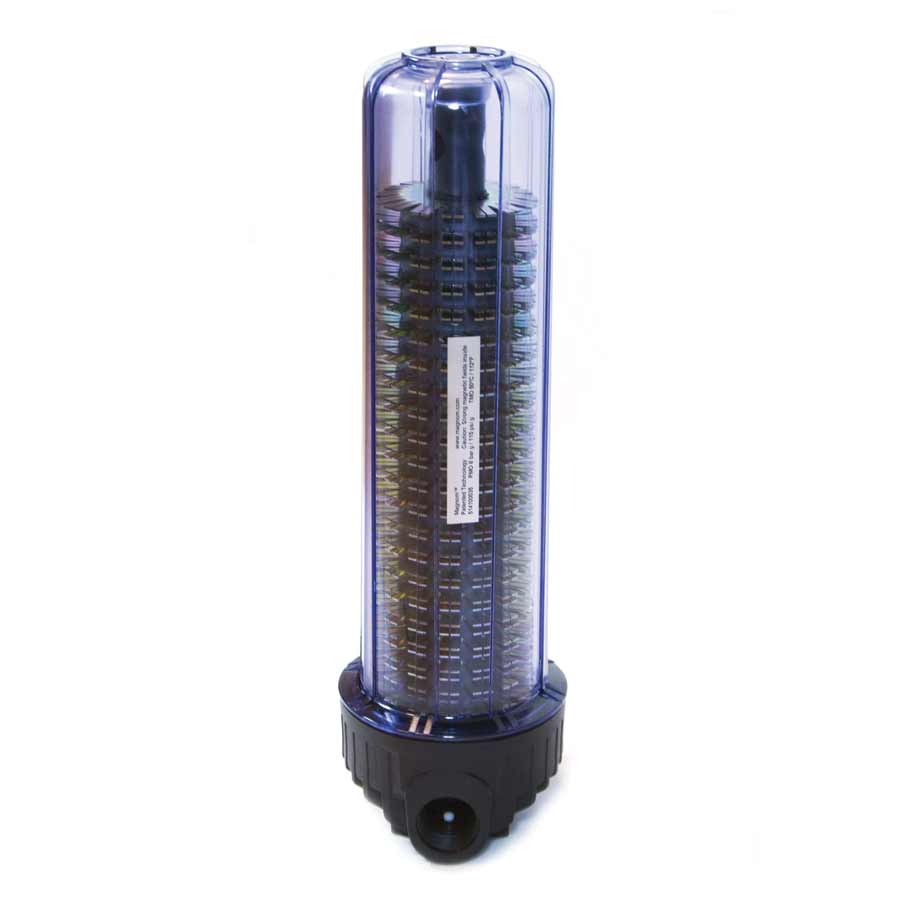

The Clear and Blue 20 units offer high capacity for use in less harsh environments. The Clear 20 features a clear SAN bowl that allows easy condition monitoring.

Features and Benefits

Mounting Method: In Line
Flow Direction: See Housing

Construction Material:

Magnet Ferrite C5/C8
Mandrel Polyvinyl Chloride
C-Clip Stainless Steel
O-Ring Viton

Max. Operating Temperature ºC/(ºF)

50/122

Max. Operating Pressure: BAR/(PSI)

8/115

Burst Pressure: BAR/(PSI)

30/435

Category / Industry:
Magnetic Filters

Details

Email Us Call Us

Description

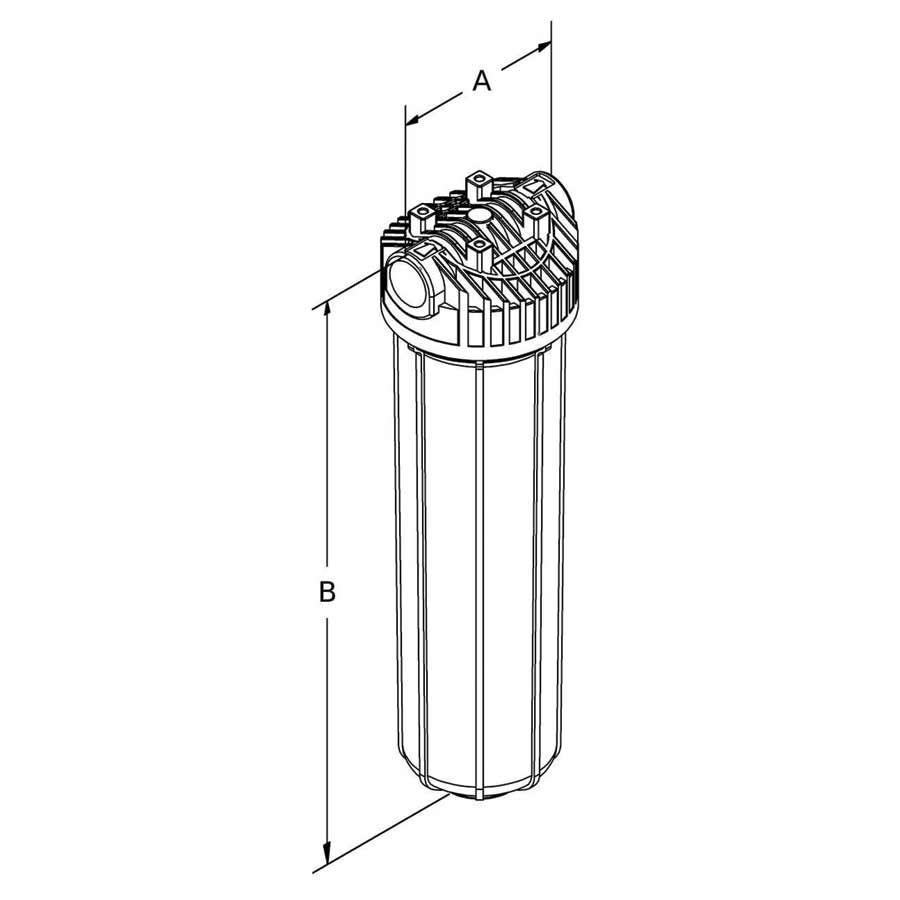

Part Number	Unit	Connection / Size	Weight KG / (OZ)	DIM.A CM / (Inch)	DIM.B CM / (Inch)	Head / Body Material	Magnom Plate Material
514102000	Clear 20	1½ BSP	16.9 / (600)	19 / (7.5)	64 / (25.19)	Polypropylene/	Carbon steel
						Styrene Acrylonitrile
514103000	Clear 20	1½ NPT	16.9 / (600)	19 / (7.5)	64 / (25.19)	Polypropylene/	Carbon steel
						Styrene Acrylonitrile
514302000	Clear 20	1½ BSP	16.9 / (600)	19 / (7.5)	64 / (25.19)	Polypropylene/	Stainless Steel
						Styrene Acrylonitrile
514303000	Clear 20	1½ NPT	16.9 / (600)	19 / (7.5)	64 / (25.19)	Polypropylene/	Stainless Steel
						Styrene Acrylonitrile
515102000	Blue 20	1½ BSP	16.9 / (600)	19 / (7.5)	64 / (25.19)	Polypropylene	Carbon steel
515103000	Blue 20	1½ NPT	16.9 / (600)	19 / (7.5)	64 / (25.19)	Polypropylene	Carbon steel
515302000	Blue 20	1½ BSP	16.9 / (600)	19 / (7.5)	64 / (25.19)	Polypropylene	Stainless Steel
515303000	Blue 20	1½ NPT	16.9 / (600)	19 / (7.5)	64 / (25.19)	Polypropylene	Stainless Steel
