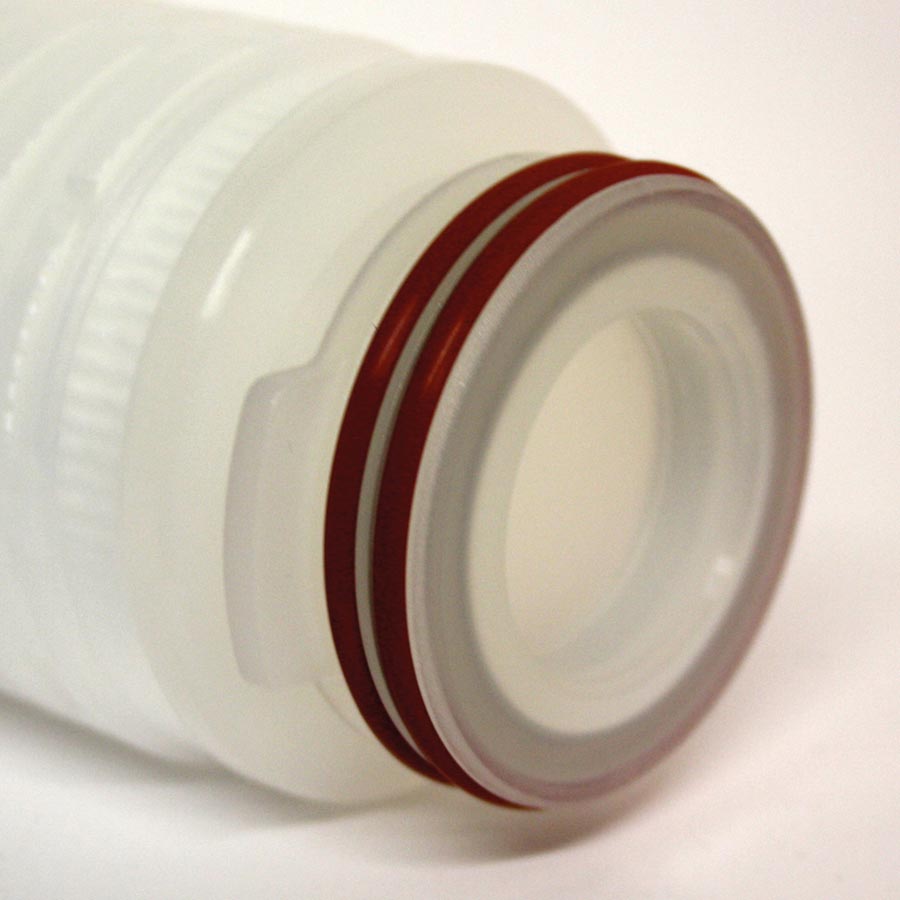

Gaskets and O-Rings
Ethylene Propylene, PTFE encapsulated, Silicone or Nitrile.
Maximum Differential Pressure
| Normal flow direction at: |
| 20°C (68°F): |
6.0 bar (87lb/in2) |
| 80°C (176°F): |
4.0bar (58lb/in2) |
| 100°C (212°F): |
3.0 bar (43lb/in2) |
| 120°C (248°F): |
2.0 bar (29lb/in2) |
| 125°C (257°F): |
1.5bar (22lb/in2) |
Effective Filtration Area
| Absolute Microbial Rating |
Effective Filtration Area (each 254mm (10") module) |
| 0.1 and 0.2μm |
0.66m2 (7.1ft2) |
Applications

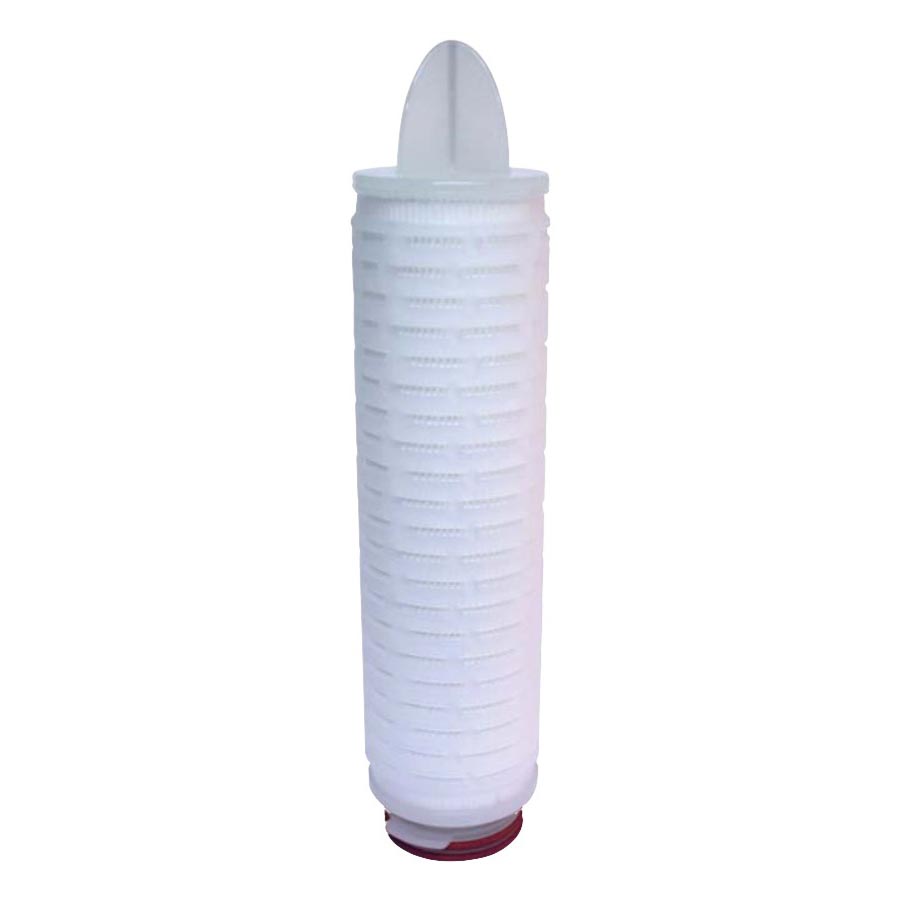

Chemifil™ polypropylene membrane cartridges meet the demanding filtration requirements of pharmaceutical, semiconductor and fine chemical manufacturers. They can be used for the fine filtration of aggressive chemical solutions including acids, alkalis, solvents and etchants. They are also suitable for a wide range of sterile venting and gas filtration applications, including the filtration of wet gases.
- Fine chemicals and solvents
- Photoresists and developers
The microfiltration of photoresists and developer solvents, susceptible to contamination and precipitation during manufacture, storage and processing.
- Pure water supply systems
- Sterile process gases
- Sterile vents

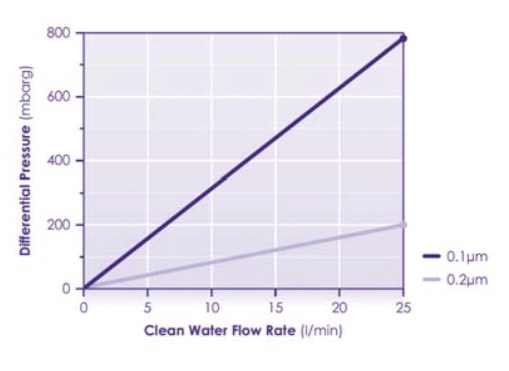

Clean Water Flow Rates
