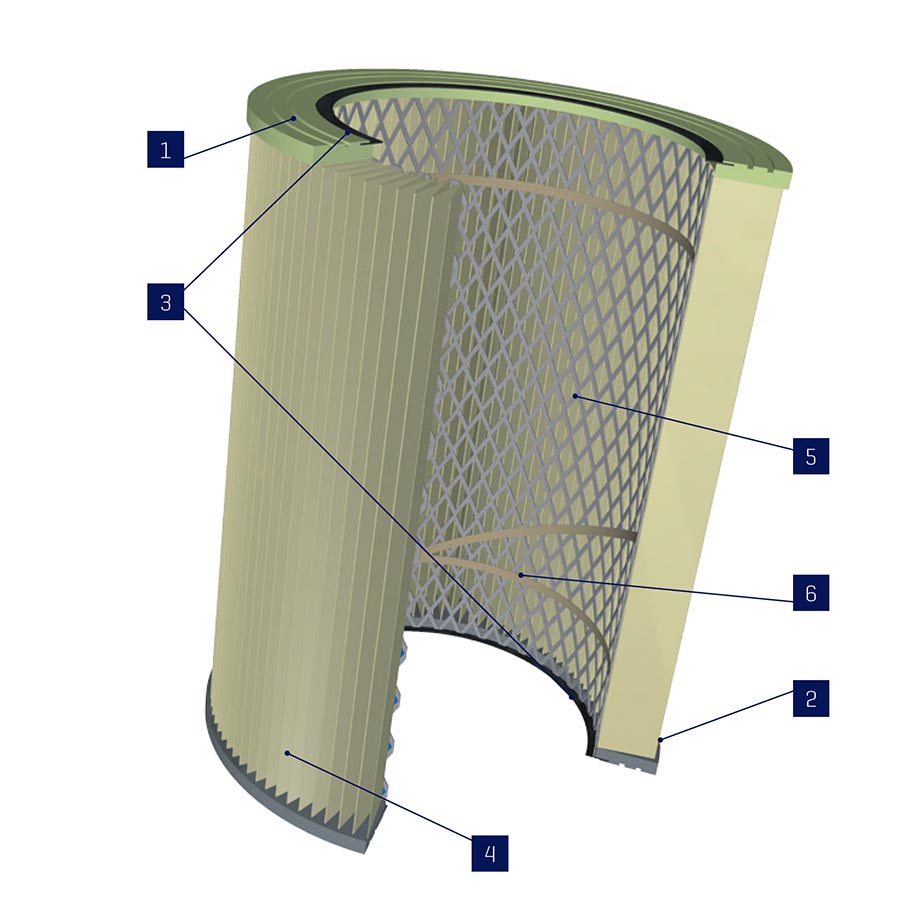

Description
TOP CAP
Molded polyurethane (PU) – hard
BOTTOM CAP
Molded polyurethane (PU) – hard
GASKET
EPDM
FILTER MEDIA
Cellulose.
INNER MESH
Galvanised steel
INNER GLUE

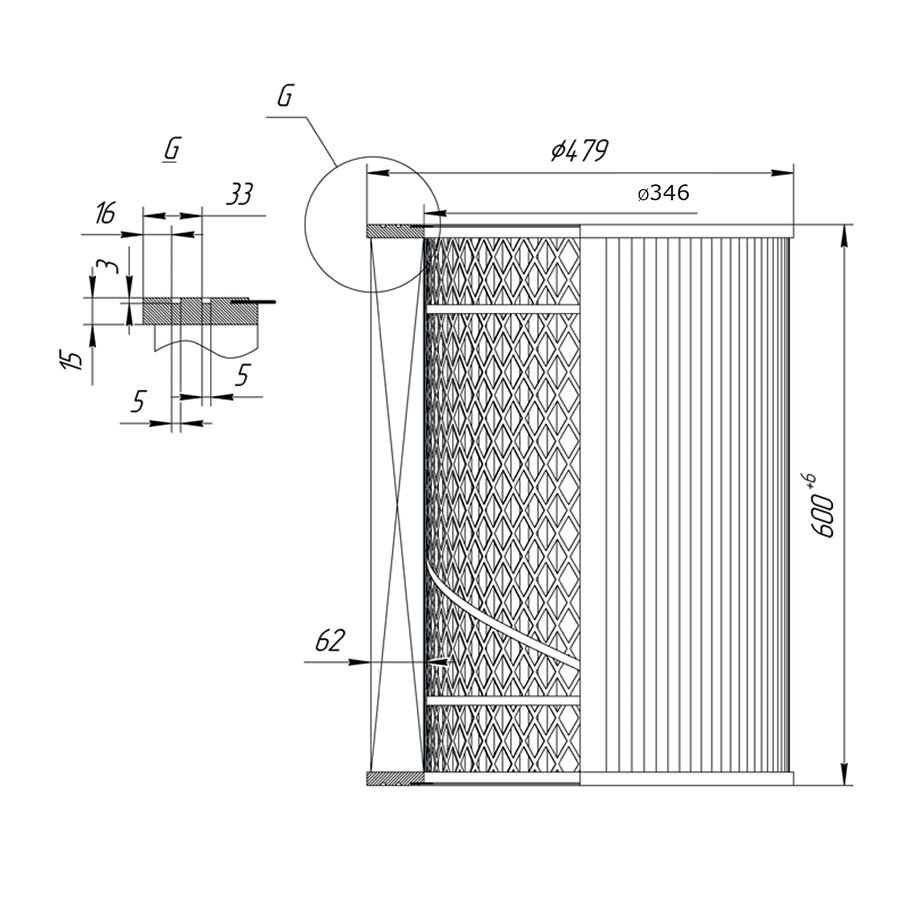

| Specifications | Standard dimensions | ||
| mm | inch | ||
| Top cap outer diameter | OD | 479 | 18.86 |
| Top cap inner diameter | ID1 | 346 | 13.62 |
| Bottom cap outer diameter | BFLD | 479 | 18.86 |
| Pleat height | PH | 62 | 2.44 |
| Cartridge length | L | 600 | 23.62 |
