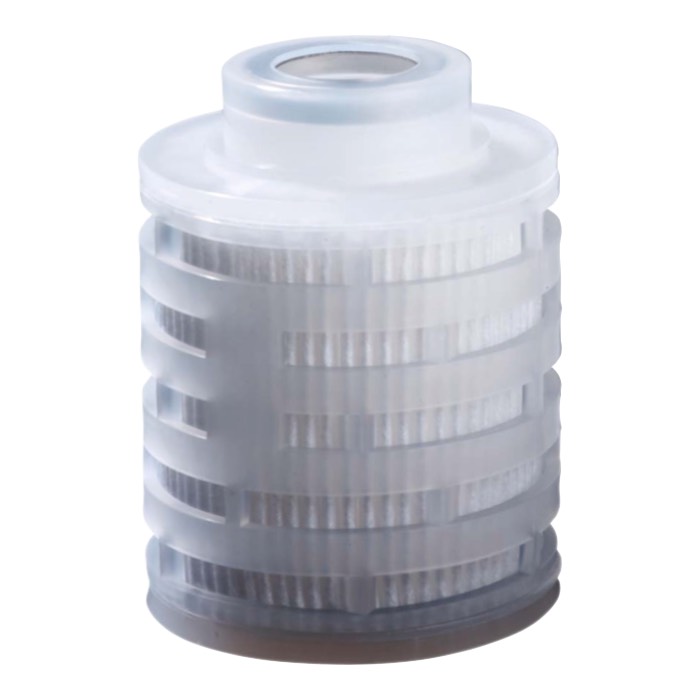

Polyethersulphone membrane cartridge filters for small-scale applications.
| Filter membrane: | Polyethersulphone |
| Membrane support: | Polypropylene |
| Irrigation mesh (support): | Polypropylene |
| Drainage layer: | Polypropylene |
| Inner core: | Polypropylene |
| Outer support: | Polypropylene |
| End fittings: | Polypropylene |
| Support ring: | Stainless steel |
| Diameter: | 70mm (2.8″) |
| Length: | 77.5mm (2.5”) |
| 136mm (5”) |
| J-style: | Silicone (other materials are available on request). |
| S-style: | Not supplied. |
| Normal flow direction at: | |
| 20°C (68°F): | 6.0bar (87psi) |
| 80°C (176°F): | 4.0bar (58psi) |
| 100°C (212°F): | 3.0bar (43psi) |
| 120°C (248°F): | 2.0bar (29psi) |
Maximum continuous: 60°C (140°F)
| Absolute Microbial Rating | Effective Filtration Area (for each 5″ cartridge) |
| 0.04, 0.1, 0.2, 0.45, 0.65 and 1.2μm | 0.19m2 (2.05ft2) |
