Home / Products / Single Use Systems / Aseptiquik® W Series Connectors

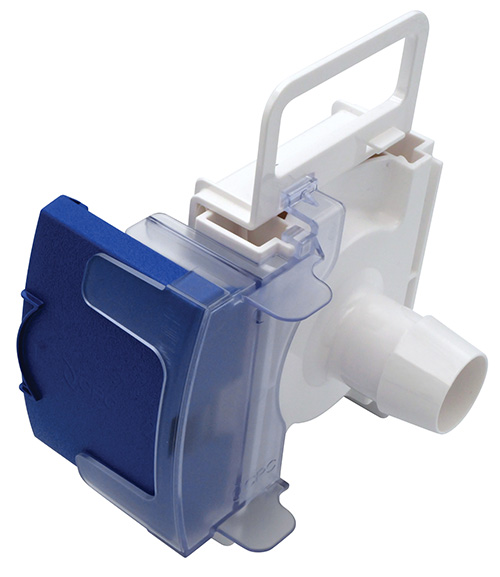

Aseptiquik® W Series Connectors

Aseptiquik® W Series Connectors

Genderless AseptiQuik® W Series Connectors with nominal 1 ½” flow path enable quick and easy sterile connections, in large-volume, high-flow production and process intensification environments. The genderless design simplifies system integration and minimizes the risk of operator error. The connectors’ robust construction provides reliable performance without the need for clamps or fixtures. Biopharmaceutical manufacturers benefit from interchangeable 1”, 1 ¼”, and 1 ½” termination sizes for full- scale bioprocessing production environments with the quality and market availability they expect from the leader in the single-use connection technology.

Category / Industry:
Single Use Systems


Details

Email Us Call Us
  • Description
  • Product attributes

Description

Features Benefits
Genderless Eases single-use systems specifications with one part number for both halves.
FLIP – ALIGN – PULL- SNAP Intuitive four-step connection process reduces risk of operator error
Secure Side Latches Increases connector robustness for wide variety of applications
Membrane Pull Tabs Ensure simultaneous and secure removal of both membranes
No Secondary Component Needed No need to purchase and store extra materials or tools to complete your sterile connection process
Largest AseptiQuik Flow Diameter (1.5″ Nominal Flow Path) Move liquid medias faster to increase process efficiency

Product Attributes

Specifications & CV Value

Operating Conditions (Fluid Transfer)

Pressure: Up to 60 psi, 4.1 bar Up to 75 psi, 5.1 bar for 48 hours
Temperature: 34°F to 104°F (1°C to 40°C)
Typical Flow Rate: Cv Value Range: 39 to 118
Termination Size: 1", 1 1/4", 1 1/2" hose barb, 1 1/2" Sanitary (25.4mm, 31.75 mm, 38.1 mm, 38.1 mm)

Materials:

Connector: Polycarbonate (white)
Shipping Clip: Polycarbonate (clear)
Pull Tabs/Caps: Polycarbonate (white, HT version)
Pull Tab Guide: Polyphenylsulfone (gray)
Side Latch: Polyphenylsulfone (blue)
Seals: Silicone (clear), platinum-cured
Membrane: Hydrophobic Polyethersulfone (HT version), PTFE strip sticker

Sterilization:

Gamma: Up to 50 kGy irradiation
Autoclave High Temp (HT) Version: Up to 266°F (130°C) for 60 minutes
