Aseptiquik® STC II Series Connectors

Aseptiquik® STC II Series Connectors

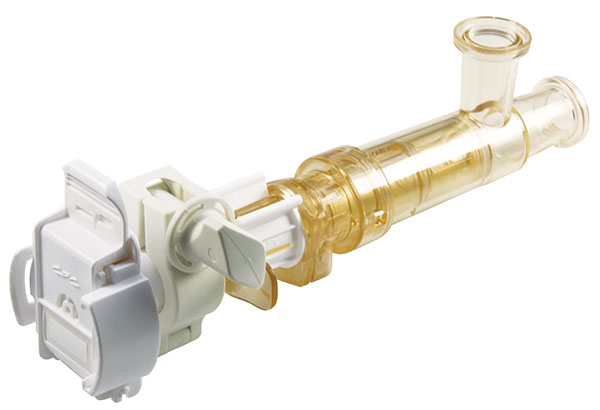

AseptiQuik® STC Connectors combine the AseptiQuik® sterile connector and the Steam-Thru® II SIP connector, giving manufacturers greater flexibility between hybrid stainless steel and single-use processing equipment.
The union of the two connectors into a single unit through a sanitary clamp allows an AseptiQuik sterile connection to be steamed on to stainless equipment via SIP. After the SIP cycle, a wide range of single- use systems can be connected.

Category / Industry:
Single Use Systems

Details

Email Us Call Us

Product attributes

Description

Features	Benefits
AseptiQuik design	Innovative three-step connection process reduces risk of operator error
Genderless Design	Eases integration of single-use systems with universal mating between AseptiQuik G Connectors
Robust Construction	Repeatable and reliable performance with no additional hardware required
Patented Steam Valve Design	Allows sterile connection and disconnection to stainless equipment and permits a high media flow rate.
Sanitary Interface Between the Two Connectors	More secure connection than tubing with cable ties
CPC Click	Audible confirmation of assembly steps
Market Availability	Open access through multiple supply chain partners

Product Attributes

Specifications & CV Value

Operating Conditions (Fluid Transfer)

Steam Position
Temperature:	39°F to 104°F (4°C to 40°C)
Pressure:	Up to 35 psi, 2.4 bar (Steam-Thru II)

Flow Position
Temperature:	39°F to 104°F (4°C to 40°C)
Pressure:	Vacuum to 20 psi, 1.4 bar

Sterilization

Full Connector Assembly (Choose 1)
Gamma:	Up to 50 kGy irradiation
Autoclave:	Up to 265°F (129°C) for a total of 60 minutes

Steam-In-Place (SIP)
Steam-Thru II:	Up to 275°F/135°C (up to ~31psig) for 60 minutes
Note: Steam pressures are estimated based upon information in Steam Tables found in literature

Termination Sizes

Sizes:	¾" and 1 ½" sanitary

Materials

Main Components:	AseptiQuik - Polycarbonate (white), USP Class VI
Main Components:	Steam-Thru II - Polysulfone (amber tint), USP Class VI
Seals:	Silicone (clear), platinum-cured, USP Class VI
Pull Tabs:	Polycarbonate (blue, standard version), USP Class VI
Pull Tabs:	Polycarbonate (white, HT version), USP Class VI
Caps:	Polypropylene (clear), USP Class VI
Membrane:	Polyethylene (standard version), USP Class VI
Membrane:	Hydrophobic polyethersulfone (HT versions), USP Class VI
Clamp:	Nylon 66 (white), USP Class VI
Removable Sleeve:	Polycarbonate

Cv Value

AQS STCII CV Value 1-2
AQG STCII CV Value 3-9
AQC STCII CV Value 3-9
Cv values are based on gpm and psi, and Ipm and bar (shown in parentheses).
