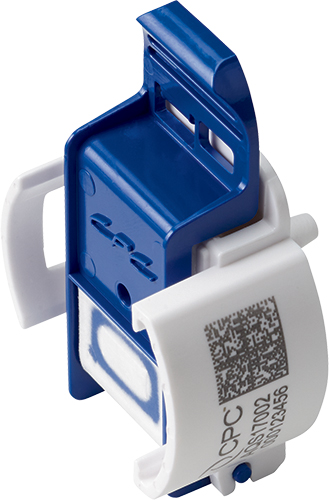

Aseptiquik® S Series Connectors

Aseptiquik® S Series Connectors

AseptiQuik® S Connectors provide quick and easy sterile connections for small-flow applications, even in non-sterile environments. The “FLIP- CLICK-PULL” design of AseptiQuik S enables users to easily transfer small volumes of media with less risk of operator error than with traditional methods. The connector’s genderless and robust design provides reliable performance without the need for clamps, fixtures or tube welders. Biopharmaceutical manufacturers can now make 1/8″, 1/4″ and 3/8″ hose barb and 1/4″ and 3/4″ sanitary sterile connections with the quality and market availability they expect from the leader in single-use connection technology.

Category / Industry:
Single Use Systems

Details

Email Us Call Us

Product attributes

Description

Features	Benefits
Genderless Design	Ease single-use systems specifications with one part number for both halves
FLIP-CLICK-PULL	Intuitive three-step connection process reduces risk of operator error
Integrated Pull Tab Covers	Pull tabs act as protective cover reducing part complexity and ensure simultaneous removal of both membranes
Robust Construction	Repeatable and reliable performance with no additional hardware required
CPC Click	Audible confirmation of assembly
1/4″ Sanitary termination with straight bore	Minimizes transitional flow disruptions through upstream processing

Product Attributes

Specifications & CV Value

Operating Conditions (Fluid Transfer)

Temperature:	39°F to 104°F (4°C to 40°C)
Pressure:	Up to 60 psi, 4.1 bar
Typical Flow Rate:	Cv 1.74 for ¼” to ¼” and .19 for 1/8” to 1/8”

Materials

Main Components:	Polycarbonate (white), USP Class VI, ADCF
Pull Tabs/Covers:	Polycarbonate (blue, standard version), USP Class VI, ADCF
Pull Tabs/Covers:	Polycarbonate (white, HT version), USP Class VI, ADCF
Seals:	Silicone (clear), platinum-cured, USP Class VI, ADCF
Membrane:	Polyethylene (standard version), USP Class VI, ADCF
Membrane:	Hydrophobic polyethersulfone (HT version), USP Class VI

Termination Sizes

Sizes:	1/8″, 1/4″ and 3/8″ ID hose barb (3.2mm, 6.4mm and 9.5mm),3/4” sanitary and MPC insert

Sterilization

Gamma:	Up to 50 kGy irradiation
Autoclave:	High Temp (HT) Version:Up to 266°F (130°C) for 60 minutes

Cv Value

Cv 1.74 for ¼” to ¼”
Cv .19 for 1/8” to 1/8”
Cv values are based on gpm and psi, and Ipm and bar (shown in parentheses).

Downloads

CPC-Aseptiquik-S-Spec-Sheet

File name: CPC-Aseptiquik-S-Spec-Sheet.pdf
File size: 246KB
