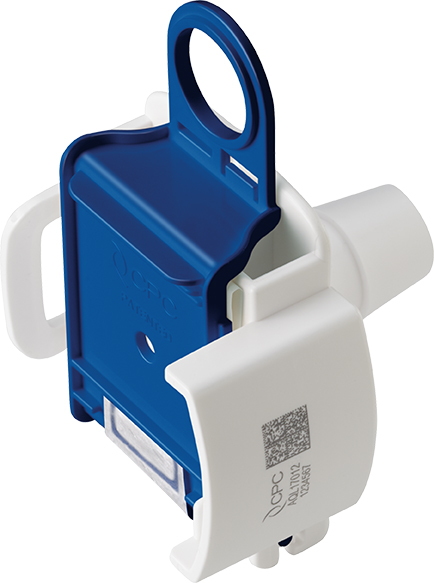

AseptiQuik® L Connectors enable quick and easy sterile connections, in large-volume, high-flow production environments. The large-format, 3/4″, 1″ hose barb and 1-1/2″ sanitary genderless design simplifies system integration and minimizes the risk of operator error. The connectors’ robust construction provides reliable performance without the need for clamps, fixtures or tube welders. Biopharmaceutical manufacturers benefit from the interchangeable connection sanitary flow solutions for full-scale bioprocessing production environments with the quality and market availability they expect from the leader in single-use connection technology.
| Features | Benefits |
| Genderless design | Eases integration of single-use systems with one part number for both halves |
| Robust construction | Repeatable and reliable performance with no additional hardware required |
| FLIP-CLICK-PULL | Intuitive three-step connection process reduces risk of operator error |
| Integrated pull tab covers | Pull tabs act as protective cover reducing covers part complexity and ensure simultaneous removal of both membranes |
| CPC Click | Audible confirmation of assembly |
| Pressure: | 60 psi, 4.1 bar |
|---|---|
| 75 psi, 5.1 bar for 48 hours | |
| Temperature: | 34°F to 104°F (1°C to 40°C) |
| Main housing components: | Polycarbonate (white), USP Class VI, ADCF |
|---|---|
| Pull Tabs/Caps: | Polycarbonate (blue, standard version), USP Class VI, ADCF |
| Polycarbonate (white, HT version), USP Class VI, ADCF | |
| Seals: | Silicone (clear), platinum-cured, USP Class VI, ADCF |
| Membrane: | Polyethylene (standard version), USP Class VI, ADCF |
| Hydrophobic polyethersulfone (HT version), USP Class VI, ADCF, PTFE strip sticker | |
| Compliance: | RoHS |
| Gamma: | Up to 50kGy irradiation |
|---|---|
| AutoClave: | One Cycle up to 130C for 60 minutes |
| Color: | Molded white |
|---|---|
| Termination Size: | 3/4" ID (19.0 mm), 1" ID (25.4mm), 1½" Sanitary |
| Cv~14.4 max | |
| Cv values are based on gpm and psi, and Ipm and bar (shown in parentheses). |
