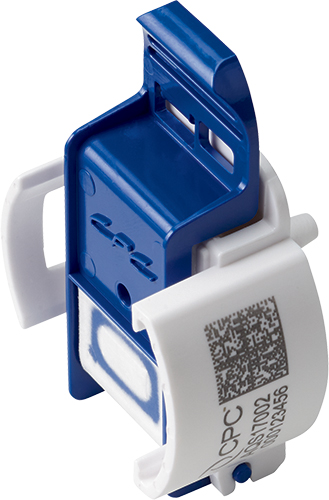

Aseptiquik® G Series Connectors

Aseptiquik® G Series Connectors

AseptiQuik® G Connectors enable quick and easy sterile connections, even in non-sterile environments. The easy-to-use genderless design simplifies system integration and minimizes the risk of operator error. The connectors’ robust construction provides enhanced user confidence and reliable performance without the need for clamps, fixtures or tube welders. Biopharmaceutical manufacturers benefit from a full range of interchangeable 1/4″ to 1-1/2″ termination solutions with the quality and market availability they expect from the leader in single-use connection technology

Category / Industry:
Single Use Systems

Details

Email Us Call Us

Product attributes

Description

Features	Benefits
Genderless Design	Eases integration of single-use systems with universal mating between G connectors
Robust construction	Repeatable and reliable performance with no additional hardware required
FLIP-CLICK-PULL	Innovative three-step connection process reduces risk of operator error
Integrated pull tab covers	Pull tabs act as protective cover reducing covers part complexity and ensure simultaneous removal of both membranes
CPC Click	Audible confirmation of assembly
Chemical Compatibility	AseptiQuik PPSU enables genderless connection for a greater range of chemical applications.
pH range	AseptiQuik PPSU: Versatile connections across downstream processes with a pH range from 2 to 12

Product Attributes

Specifications & CV Value

Operating Conditions (Fluid Transfer)

Pressure:	Up to 60 psi, 4.1 bar
	Up to 75 psi, 5.1 bar for 48 hours
Temperature:	34°F to 104°F (1°C to 40°C)

Materials

Main components:	Polycarbonate (white), USP Class VI, ADCF (standard and HT versions)
	Polyphenylsulfone – PPSU, USP Class VI, ADCF (AQG PPSU version)
Pull Tabs/Caps:	Polycarbonate (blue, standard version), USP Class VI, ADCF
	Polycarbonate (white, HT version), USP Class VI, ADCF
	Polycarbonate (purple, PPSU version), USP Class VI, ADCF
Seals:	Silicone (clear), platinum-cured, USP Class VI, ADCF
Membrane:	Polyethylene (standard version, PPSU version), USP Class VI, ADCF
Membrane:	Hydrophobic polyethersulfone with PTFE strip (HT version), USP Class VI

Sterilization

Gamma Standard (blue) and PPSU (purple) Version:	Up to 50kGy irradiation
AutoClave (white, High Temp(HT) Version):	One Cycle up to 266°F (130°C) for 60 minutes

Other

Termination Size:	1/4″, 3/8”, 1/2″, 3/4″ ID hose barb (6.4mm, 9.5mm, 12.7mm, 19.0mm) and 3/4″, 1-1/2″ sanitary

Cv Value

Cv 1.74 for ¼” to ¼”
Cv .19 for 1/8” to 1/8”
Cv values are based on gpm and psi, and Ipm and bar (shown in parentheses).
