Gaskets and O-Rings
FDA approved Ethylene Propylene, PTFE encapsulated, Silicone or Nitrile.
Maximum Differential Pressure
| Normal flow direction at: |
| 20°C (68°F): |
6.0 bar (87lb/in2) |
| 80°C (176°F): |
4.0 bar (58lb/in2) |
| 100°C (212°F): |
3.0 bar (43lb/in2) |
| 120°C (248°F): |
2.0 bar (29lb/in2) |
Operating Temperature
Maximum continuous: 60°C (140°F)
Sterilisation
In situ steam 80 x 20 minute cycles at 125°C (257°F).
Hot water 100 x 20 minute cycles at 85-90°C (185-194°F).
Effective Filtration Area
| Pore Size Rating |
Effective Filtration Area (each 254mm (10") module) |
| 0.2, 0.45, 0.65 and 1.2μm |
0.69m2 (7.4ft2) |
Applications
- Pure water supply
For use in de-mineralised and de-ionised water treatment systems for bioburden reduction in recirculating systems.
- Biopharmaceuticals
- Opthalmic solutions
- Electronics and semiconductors
For the sub-micronic filtration of process water and chemicals, including solvents, developers and photoresists. Applications typically include central water plant treatment.
- Fine chemicals
- Beverages

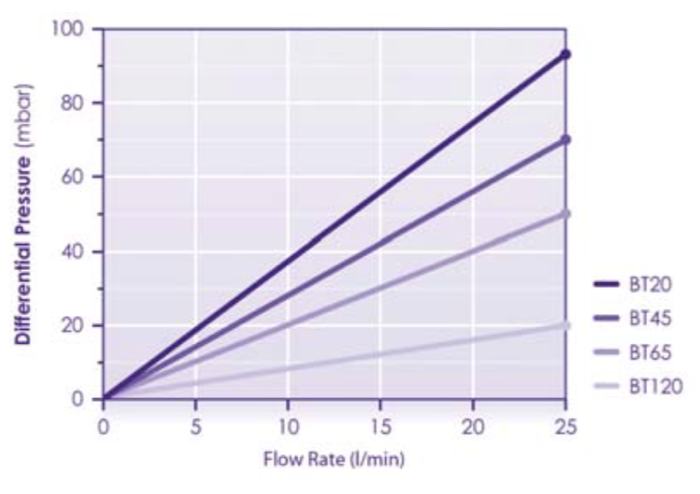

Clean Water Flow Rates
