AET PTFE filter

AET PTFE filter

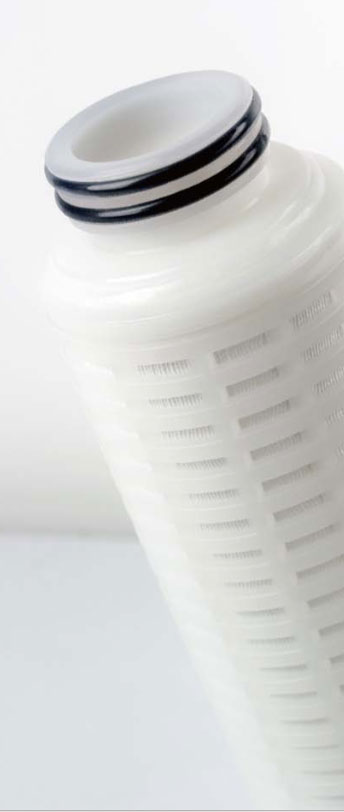

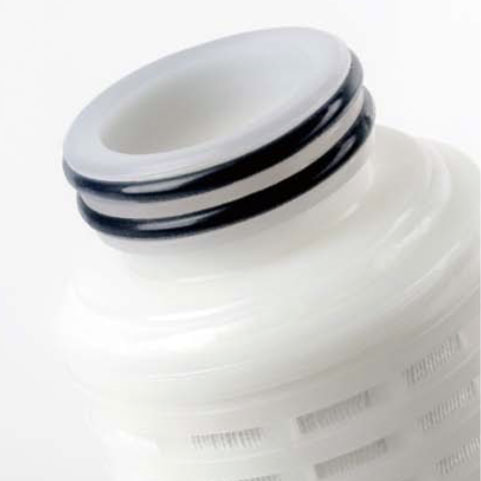

AETT® Filter Cartridges are composed of a hydrophobic PTFE membrane and ECTFE core, cage and support making it suitable to use in strong acid and solvent filtration.

AETI® Filter Cartridges are composed of a hydrophilic PTFE membrane which is specially designed for aggressive water-based filtration conditions.
AETT and AETI Filter Cartridges are recommended for particle removal in pharmaceutical applications.

Categories / Industries:
Membrane Filtration, Pharmaceutical


Details

Email Us Call Us
  • Description
  • Product attributes

Description

AET PTFE Filter Features and Benefits

  • 100% all Fluoropolymer construction
  • Absolute rated in all ratings except 0.22μm; 0.22μm rating’s retention efficiency is up to 99.99999%
  • AET PTFE Filters have high filtration performance including high flow rates and low pressure drops
  • Available in both hydrophobic and hydrophilic PTFE media

Quality Standards

  • AET PTFE Filters are individually Integrity Tested by Hall Pyke prior to leaving the factory
  • Filters are Fully Traceable with a unique serial number
  • Designed, developed and manufactured in compliance with ISO9001
  • Full Regulatory Compliance with the following:
    · 21CFR.210.3(b)(5)(6), 211.72 for Non-Fiber Release
    · Endotoxins: <0.25EU/ml/10inch filter
    · USP <88> Plastic Class VI-121°C
    · FDA 21 CFR177-182 & EU 1935/2004/EC

AET PTFE Filter – Typical Applications

  • Strong Acid Filtration
  • Aggressive Solvents Filtration

Product Attributes

Materials of Construction
 Filter Media AETT: Expanded Hydrophobic PTFE Membrane AETI: Expanded Hydrophilic PTFE Membrane
Cage/Support ECTFE
Core/End Caps ECTFE
O-ring PTFE/PTFE Encapsulated Viton

Operating Conditions
 Max. Continuous Operating Temperature 96°C
Max. Differential Pressure 5.0 bar / 21°C (forward) 3.0 bar / 80°C (forward)
Effective Filtration Area 0.96m2 / Φ 68-10 inch
* Not Recommended for Inline Steam Sterilization and Autoclaving
Ordering Information
AETT AETI Removal Ratings End Cap Nominal Length Seal Material -P
0002=0.02μm 0010=0.1μm 0022=0.22μm 0045=0.45μm 0100=1.0μm SF=226 /Fin SC=226 /Flat DTF=D222 /Fin DTC=D222 /Flat DOE=Double Open End 05= 5" 10=10" 20=20" 30=30" 40=40" K=PTFE P=PTFE Encapsulated Viton
